Description

 Portable Metal Laser Marking Machine



Product Description

   Product introduction

Portable laser marking machine

     The main feature of HG-20w-3 handheld marking machine is small and convenient, which can be operated by hand. The laser marking of large mechanical parts in any direction solves the problem of laser marking of existing large parts. It can be widely used in large equipment manufacturing, such as rail, tire, train manufacturing, aircraft manufacturing, hydraulic generator, wind generator, steam turbine motor, engine, large bearing, shipbuilding, large mold. In short, the handheld laser marking machine can be flexible around parts processing.817644533866377040_



5658647435810103_



Main technical parameters:



1. Laser power: 20w; Wavelength of 1.064 microns; (in compliance with export safety standards)

2. Scanning speed: 15000mm/s;

3. Scope of work: 110mm*110mm -- 175mm*175mm(optional)

4. Power input: 220v/0.5kw

5. Can run continuously for 24 hours without interruption.

6. Fiber length: 2m-5m(optional)

7. Operating system: WinXPWin7. Marking software supports PLT, DXF, PCX, BMP and other file formats.

Marking sample

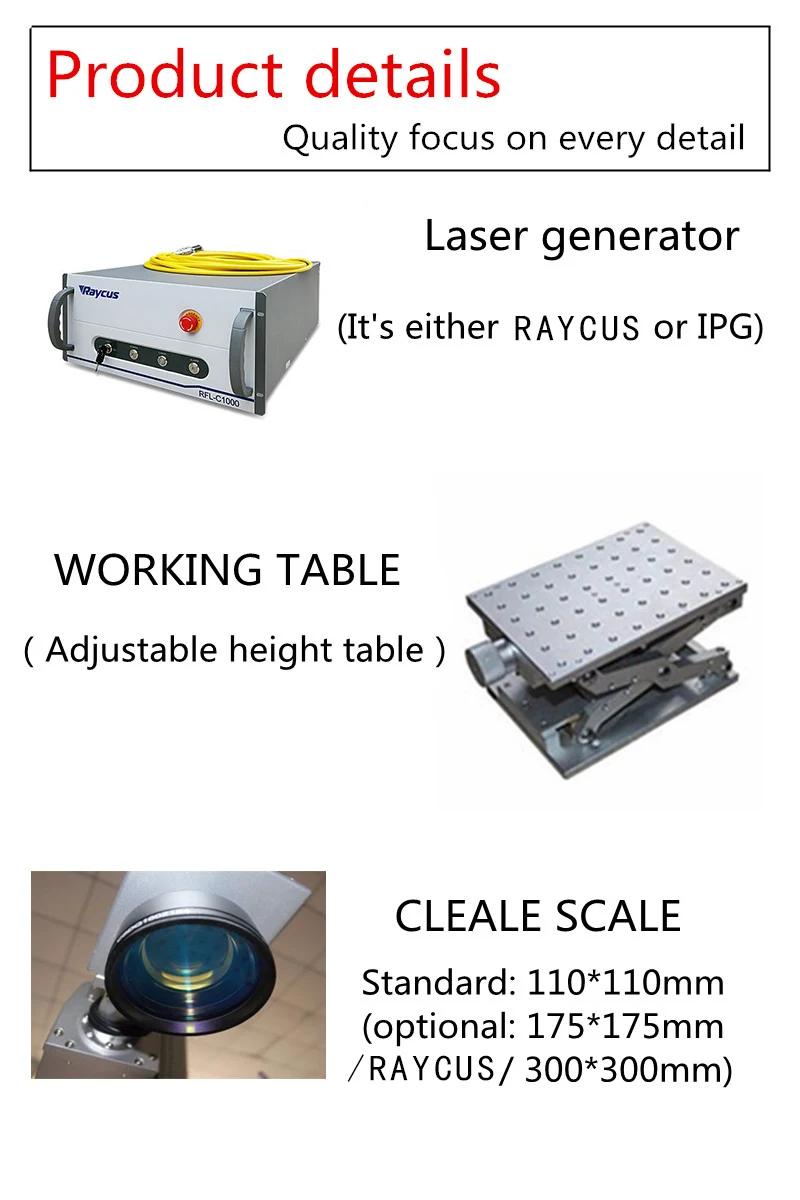

  Technical parameter list



Technical indicators

HG-JG20W/30W







Laser parameter

Laser

Fiber laser

The laser wavelength,

1064nm

Average output

20W/30W

Modulation frequency range

20kHz~80kHz



The galvanometer parameters

Maximum linear velocity

8000mm/s

resolution ratio

0.001mm

Repeated positioning accuracy

0.003mm





Optical output characteristic

Marking scope

    F=160mm,The scope of11110mm.175*175mm

Minimum line width

0.01mm

Minimum character height

0.2mm

The cooling system

Cooling way

Air cooling





System property

Laser power supply

0.5KW/AC220V/50Hz

Environmental requirements

0~35°C,humidity90%

Selection requirements:

The hg-20w has an optional range of 110*110mm and 175*175mm.

The range of choice for hg-30w is 110*110mm, 175*175mm and 300*300mm.










.jpg4_

Applicable industry:

Precision instruments, computer keyboard, car accessories, plumbing accessories, communications equipment, medical equipment, sanitary equipment, hardware tools, electronic components, household electrical appliances, watches, die jewelry, mobile phone keyboard, button, kitchen utensils, knives, cooking utensils, stainless steel products, aerospace equipment, integrated circuit chips, computer accessories, mold signs, elevator equipment, wires and cables, industrial bearings, purchasing products, such as building materials.
